Designed for Auto to Manual Conversions
Fits 2004-2006 TSX
Provides Stability for Clutch Pedal Operation
Steel Template, Brace, & Instructions Included

Description
Vehicle Fitment
Included

Hasport Manual Swap Pedal Mounting Brace - 04-06 TSX

You're doing an auto to manual swap in your 04-06 TSX and you need to mount the clutch pedal properly? The clutch pedal has to bolt to the cowl or it's going to flex and feel terrible. This Hasport pedal brace (part number HAS-CL9TCB) gives you a solid mounting point for the clutch pedal. You can weld it to the cowl or bolt it using rivet nuts or threaded inserts. The brace comes with a steel template that helps you locate the clutch pedal and drill the mounting holes in the right spot. You bolt the template to the brake booster inside the car and it shows you exactly where the holes need to go. Fair warning, you're pulling the dash to install this.

Here's Why You Need This for a Manual Swap

When Honda built your TSX as an automatic, there's no clutch pedal mount on the cowl. The firewall's not set up for it. You're doing a manual swap and you need somewhere solid to bolt that clutch pedal. Without a proper mount, the pedal's going to flex against the firewall and your engagement point's going to be inconsistent and mushy. The Hasport brace bolts to the cowl and gives you a solid, reinforced mount for the clutch pedal. Now when you push the pedal, the force goes into the brace instead of flexing the thin firewall. Your pedal feels firm and consistent like it's supposed to.

Weld It or Bolt It

You've got options for how you install this. You can weld the brace to the cowl if you want maximum strength. That's the strongest way to do it but you're welding inside your car. Most people bolt it using rivet nuts or threaded inserts. Rivet nuts are easier - you drill the holes, install the rivet nuts, and bolt the brace down. Threaded inserts work too. Both are strong enough for a street car. If you're building something high-power or you just want it bulletproof, weld it. Either way you're getting a solid mount.

Template Shows You Where to Drill

The kit comes with a steel template. You bolt the template to the brake booster inside the car. The template shows you exactly where to drill the holes for the clutch pedal mount. That way you're not guessing where the holes go or drilling in the wrong spot. You locate it with the template, mark your holes, pull the template, drill. Then you install the brace and mount your clutch pedal. It's straightforward but you've got to pull the dash to get access to the brake booster and cowl area.

You're Pulling the Dash

Installing this brace requires removing the dashboard. That's not a quick job. You're looking at a few hours to get the dash out, install the brace, and button everything back up. It's not difficult but it's tedious. If you're already doing the manual swap and you've got the dash out for the clutch master cylinder install, do the pedal brace at the same time. Don't skip it and then have to pull the dash again later because your clutch pedal feels like garbage. We use these on our own manual swap builds because they're the right way to mount a clutch pedal. Your engagement point needs to be solid and consistent. Without the brace, it's not.

What You Get
- Hasport clutch pedal mounting brace (part number HAS-CL9TCB)
- Steel template for locating clutch pedal mounting holes
- Mounts clutch pedal to cowl for solid, consistent pedal feel
- Install by welding or bolting with rivet nuts/threaded inserts
- Template bolts to brake booster to locate mounting holes
Fits Your Car
- 2004-2006 Acura TSX (auto to manual swap)
Note: Dashboard removal is required to install this brace. Plan for a few hours of work. The template bolts to your brake booster - use it to mark your hole locations before you drill. If you're welding the brace, make sure you've got proper ventilation and you're not welding near wiring or plastic trim. If you're using rivet nuts or threaded inserts, make sure they're rated for the load. Don't drill the holes freehand without using the template - you'll drill in the wrong spot and then you've got extra holes in your cowl.
2004-2006 Acura TSX

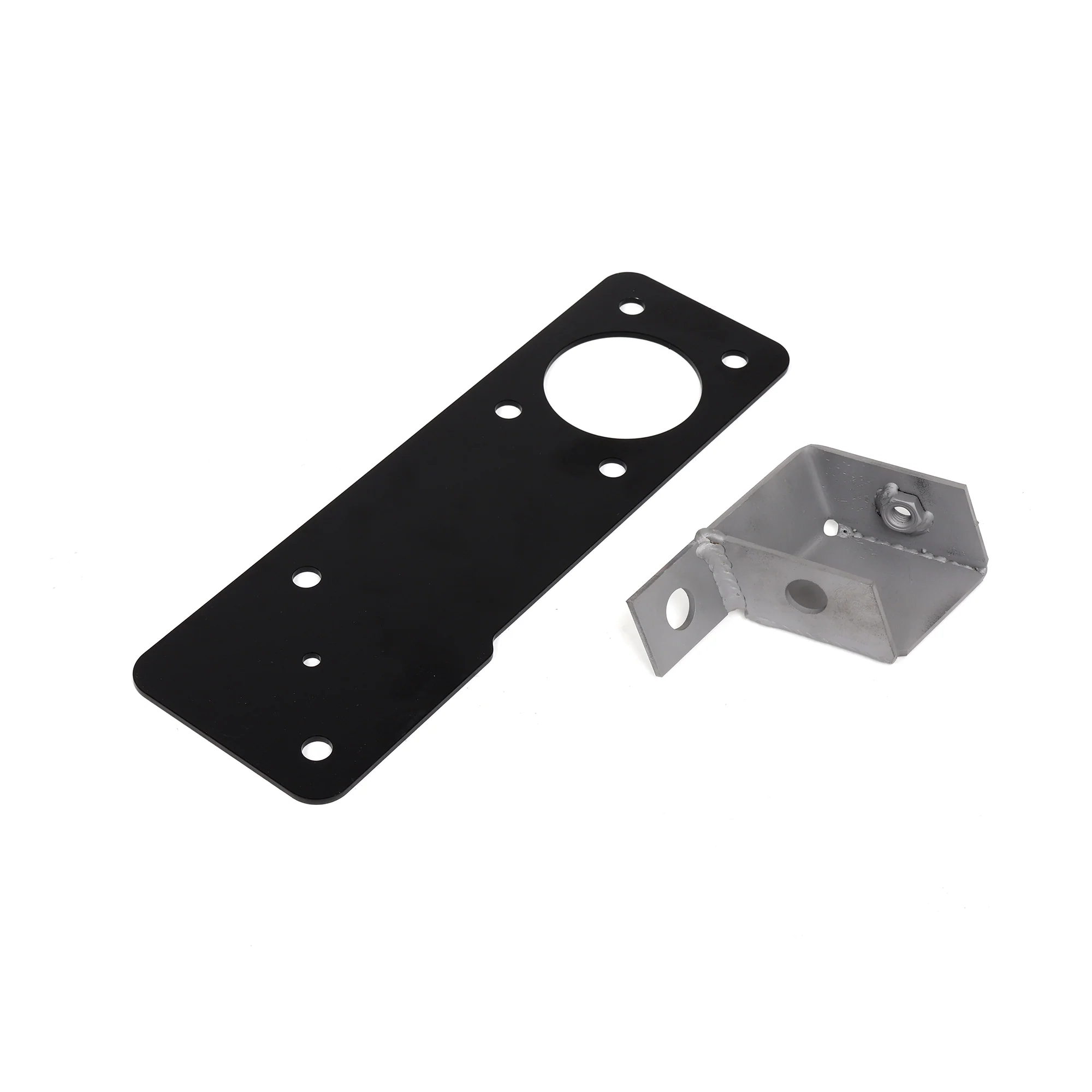

(1) Steel Template
(1) Pedal Brace

(1) Instruction Sheet
